Allied Telesis CentreCom XS916MXT 12-Port Managed Layer 3 Switch - 10GBase-T 10GbE Ethernet, Modular Design, 78W Power, Rack-Mountable for Data Centers & Enterprise Networks

Layer 3 10G Stackable Managed Switches

The XS916MXT and XS916MXS switches offer cost effective, high-speed 10G connectivity for servers and storage, and support 100/1000 connections for existing networks. The XS900MX Series enable a highly flexible and reliable network, which can easily scale to meet increasing traffic demands.

Overview
The XS900MX Series are the ideal 10G access switches for enterprise networks or anywhere a relay switch with 10G uplink is required. The switches also make the ideal core or aggregation switch, to connect servers and storage in a small network.

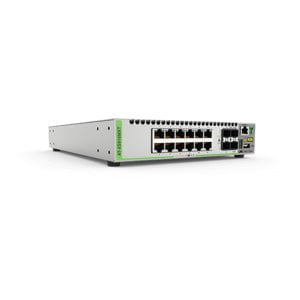

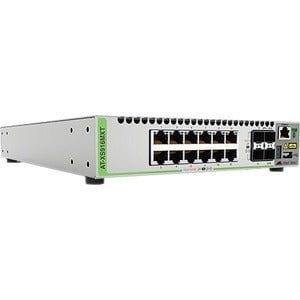

The XS916MXT features 12 x 100/1000/10GBASE-T and 4 x SFP+ slots. The AT-XS916MXS features 4 x 100/1000/10GBASE-T and 12 x SFP+ slots.

Easy management
The XS900MX Series switches feature Allied Telesis Autonomous Management FrameworkTM (AMF), a sophisticated suite of management tools that provides a simplified approach to network management.

Common tasks are automated or made so simple that the everyday running of a network can be achieved without the need for highly trained, and expensive, network engineers. Powerful features like centralized management, auto-backup, auto-upgrade, autoprovisioning and auto-recovery enable plug-and-play networking and zerotouch management.

Resiliency
Ethernet Protection Switching Ring (EPSRingTM) and 10 Gigabit Ethernet allow several XS900MX Series switches to form a protected ring capable of recovery within as little as 50ms. This feature is perfect for high performance and high availability in enterprise networks.

Stackable
Flexi-stacking allows a user to stack two XS900MX Series switches, with the choice of using 10G SFP+ direct attach cables, or RJ45 copper connectivity. VCStack provides a highly available system where network resources are spread out across stacked units, reducing the impact if one of the units fails. With VCStack and the XS900MX Series, up to 28 x 10G ports can be provisioned as a single virtual switch in one rack unit.

Enhanced security
A secure network environment is guaranteed, with powerful control over network traffic types, secure management options, and other multilayered security features built right into the XS900MX Series switches:

• Tri-Authentication
• Multiple Dynamic VLAN
• Enhanced Guest VLAN
• Auth-fail VLAN
• Promiscuous/intercept web authentication
• Two-step web authentication

• Port security
• SSH to secure remote access environment
• DHCP snooping
• RADIUS/TACACS - User authentication database
• Encryption and authentication of SNMPv3
